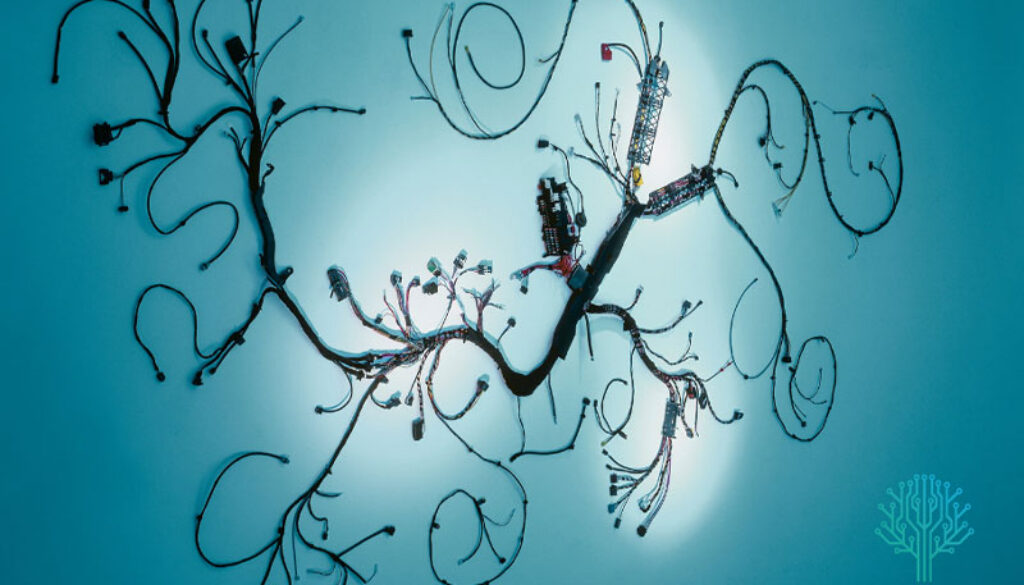

Complex Wire Harness Assemblies: Building Reliable Connections for the Real World
Complex wire harness assemblies are the unsung heroes inside today’s most demanding electronic systems. They keep power flowing, signals clean, and communication reliable even in environments that push equipment to its limits. Whether it’s industrial automation, robotics, military tech, or alternative energy systems, these harnesses bring structure and reliability to the tangled world of wires and connectors.
Unlike simple cable assemblies, complex wire harness assemblies involve multiple branches, mixed wire gauges, specialized connectors, shielding, labeling, and environmental protection. Every detail matters. A single inconsistency can cause an adverse ripple effect through an entire system.
That’s why partnering with an experienced electronics manufacturer is essential. When the stakes are high, precision isn’t optional; it’s the foundation of performance.
What Makes a Wire Harness “Complex”?
Complexity isn’t just about how many wires are involved. It’s about how many variables must work together flawlessly:
- Numerous circuit branches and termination points
- Multiple wire gauges and insulation types
- Tight dimensional tolerances
- High-density or specialized connectors
- Shielded cables for signal integrity
- Custom labeling and traceability
- Protective sleeving, conduit, heat-shrink, or overbraid
- Exposure to heat, moisture, vibration, chemicals, or abrasion
- Integration with PCAs, control panels, or box builds
- Application-specific testing and documentation
A complex harness must be organized, repeatable, and easy to install and service. If routing is off by even a few millimeters, technicians may struggle with fit, strain relief, or connector access, all of which can affect long-term reliability.
Design & Engineering: Where Reliability Begins
Every successful harness starts with clear documentation: wiring diagrams, BOMs, connector specs, drawings, and quality requirements. But documentation alone isn’t enough.
A manufacturability review helps catch issues early, such as incompatible terminals, difficult routing paths, unnecessary material variations, or hard-to-source components.
Material selection is equally critical. Conductors must match voltage and current needs. Insulation and protective materials must withstand vibration, temperature swings, fluids, and other environmental challenges.
Collaboration between engineering and manufacturing can simplify production by standardizing wire sizes, reducing connector variations, and designing accessible termination points.
Precision Manufacturing: Where Craft Meets Technology
Building complex wire harness assemblies blends automation with skilled manual work.
Automated equipment handles cutting, stripping, and labeling with repeatable accuracy. Skilled technicians perform routing, crimping, connector installation, bundling, and detailed assembly tasks.
Crimp quality is one of the most important factors. A single bad crimp can compromise an entire system.
Routing and bundling require equal care. Wires must follow the layout without being stretched, pinched, or twisted. Protective materials add abrasion resistance, strain relief, and shielding where needed.
Clear identification, such as labels, color coding, and drawings ensure every wire reaches the correct termination point.
Testing: Proving Performance Before the Product Ships
Testing confirms that a harness meets its electrical, mechanical, and dimensional requirements.
- Electrical continuity
- Insulation resistance
- Dimensional verification
- Visual workmanship inspection
- Functional testing
For rugged or safety-critical applications, customers may require high-voltage testing, environmental screening, or custom functional tests.
Cypress Technologies supports these requirements through ISO 9001:2015-certified processes, detailed inspections, electrical testing, and custom test fixture development.
Why Integrated Manufacturing Matters
A complex wire harness assembly rarely works alone. It connects PCAs, sensors, motors, control panels, power supplies, and other electromechanical components.
Cypress Technologies provides:
- Cable & wire harness assembly
- Printed circuit board assembly
- Box and panel builds
- Electromechanical integration
- Engineering support
- Supply chain management
- Testing
Keeping these services under one roof improves communication, reduces supplier coordination, and ensures the harness is evaluated as part of the full system.
Choosing the Right Manufacturing Partner
When selecting a partner for complex wire harness assemblies, look for:
- Experience with custom harness manufacturing
- Skilled technicians and controlled processes
- Engineering and DFM support
- Component sourcing and inventory management
- Prototype and scalable production
- Documented inspection and testing
- Traceability and quality documentation
- Ability to integrate with larger assemblies
Early collaboration helps identify component availability, tooling needs, testing requirements, and potential manufacturing challenges.
Cypress Technologies: Your Partner for Complex Wire Harness Assemblies
Since 1987, Cypress Technologies has supported customers across industrial, robotics, autonomous systems, military, oil and gas, and alternative energy markets. Our team builds custom cable and harness assemblies designed for demanding environments and seamless integration.
From engineering support and prototyping to production, testing, and quality assurance, we deliver consistent workmanship backed by ISO 9001:2015-certified processes.
If your next product requires complex wire harness assemblies built for rugged, reliable performance, Cypress Technologies is ready to help. Contact us today to get started.
