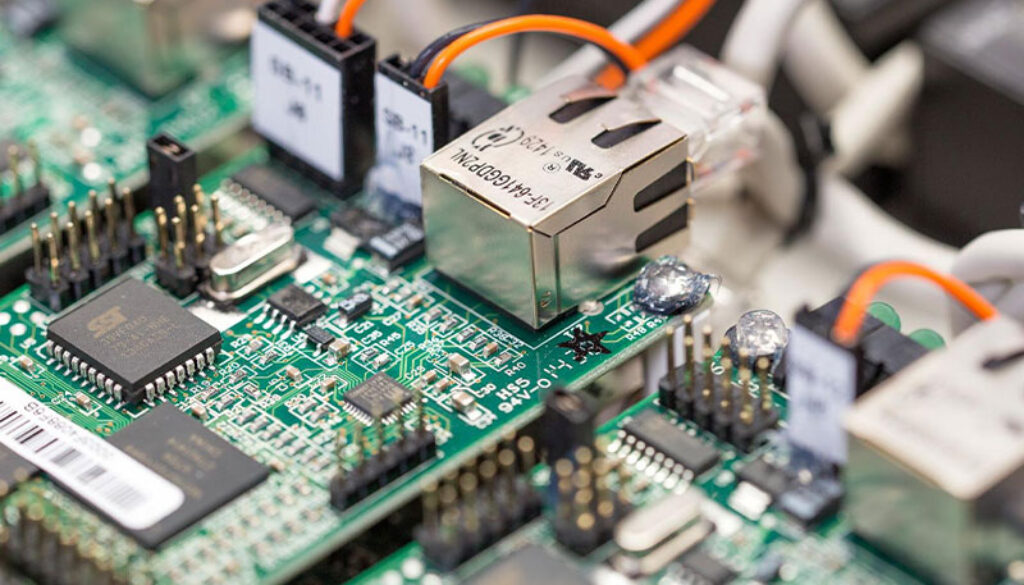

The Basics of PCB Assembly: A Comprehensive Guide
Printed circuit boards or PCBs play a key role in most electronics. If you take apart any advanced device, you’re likely to see the small chip with its characteristic green color and copper lines. Because of their widespread use, PCB assembly has become a common yet vital service for electronic contract manufacturers. In this article, we’ll go over the basics of PCB assembly, including the major components of a PCB assembly and the steps involved.
What is a PCB, and what is a PCB assembly?
Printed circuit boards are small green chips made of fiberglass and copper (or another metal) lines that provide connections between the components on the board. The whole board is held together by epoxy and insulated with a solder mask, which gives it the characteristic green color.
PCB assembly is the process of mounting small components onto the circuit board in order to ensure that it functions a certain way. Typically, PCBAs are used for more advanced applications or for electronics that will serve a very specific purpose. PCB assembly can be automated or manual, though these days, automated assembly is much more common thanks to advancements in robotics technology. However, there are still certain steps that are typically manual, especially depending on the type of PCB being crafted.
The typical parts of a printed circuit board assembly
The base of a PCB consists of several key components that are largely the same across all boards. The substrate, which can be rigid, flexible, or metal, is what gives the board its rigidity (or flexibility). Rigid substrates are the most common, typically consisting of fiberglass, but flexible boards like Kapton plastic are popular for applications that require more bendable and temperature-resistant boards. Another alternative is the metal-core PCB, which tends to dissipate heat more efficiently and protects components on the board that are more heat-sensitive.
The next layer is the copper foil, which can adhere to either or both sides of the substrate. After the copper is added, a solder mask covers the entire board, keeps everything in place, and provides attachment points for any components added. The final layer is a silkscreen, which typically consists of labels that indicate the function of each component on the board.
The technology of PCB assembly
There are two basic types of equipment used in PCB assembly processes. The main one is surface-mount technology (SMT), which places sensitive, typically very small components such as resistors or diodes. This is almost always automated these days for more efficient and effective assembly.
The other basic type of equipment used in PCB assembly is Through-Hole Insertion Technology (THT), which is well-suited for larger components with leads or wires that must be inserted through holes. It’s usually used for components like capacitors and coils and can be done manually or automatically.
The basic steps of PCB Assembly
1. Solder Paste Stencil
The solder mask is applied to the PCB where the components will eventually sit. This paste is important for ensuring adherence on the finished board.
2. Pick & Place
Once the solder paste has been applied, the boards are sent on a conveyor belt to robotic pick and place equipment, which adds surface-mount components to the board.
3. Reflow Soldering
Once all of the surface-mounted components have been added, the PCBs are transferred to a conveyor that carries them through a reflow oven to melt the solder. The boards are allowed to cool and solidify in a controlled environment afterward to ensure everything remains in place.
4. Inspection & Quality Control
After the PCBs have cooled, they are tested for functionality. This step also ensures that there are no misplaced components or improper connections on the board.
5. Through-Hole Insertion
This step is not always necessary, depending on the components that need to be added to the board. Any plated-through-hole components are added during this step, and specialized soldering is performed on them as well. The soldering can be manual or automated (which is also known as wave soldering).
6. Final Inspection & Cleaning
All final quality checks are completed, and any residue from the assembly process is cleaned off in preparation for the delivery of the finished PCBs.
